Shenzhen Sunbow Insulation Materials MFG.Co.,Ltd.
SBS-SRT-FG
Model number：SBS-SRT-FGWorking Temperature：-60℃-200℃StructureIt is extruded by food grade level silicone rubber.UsageFood Grade Silicone Rubber Tubing are commonly used in contact …
- Part Number
- SBS-SRT-FG
- Category
- Food Grade silicone rubber tube
- Brand
- Shenzhen Sunbow Insulation Materials MFG.Co.,Ltd.
Model number：SBS-SRT-FG
Working Temperature：-60℃-200℃
Structure

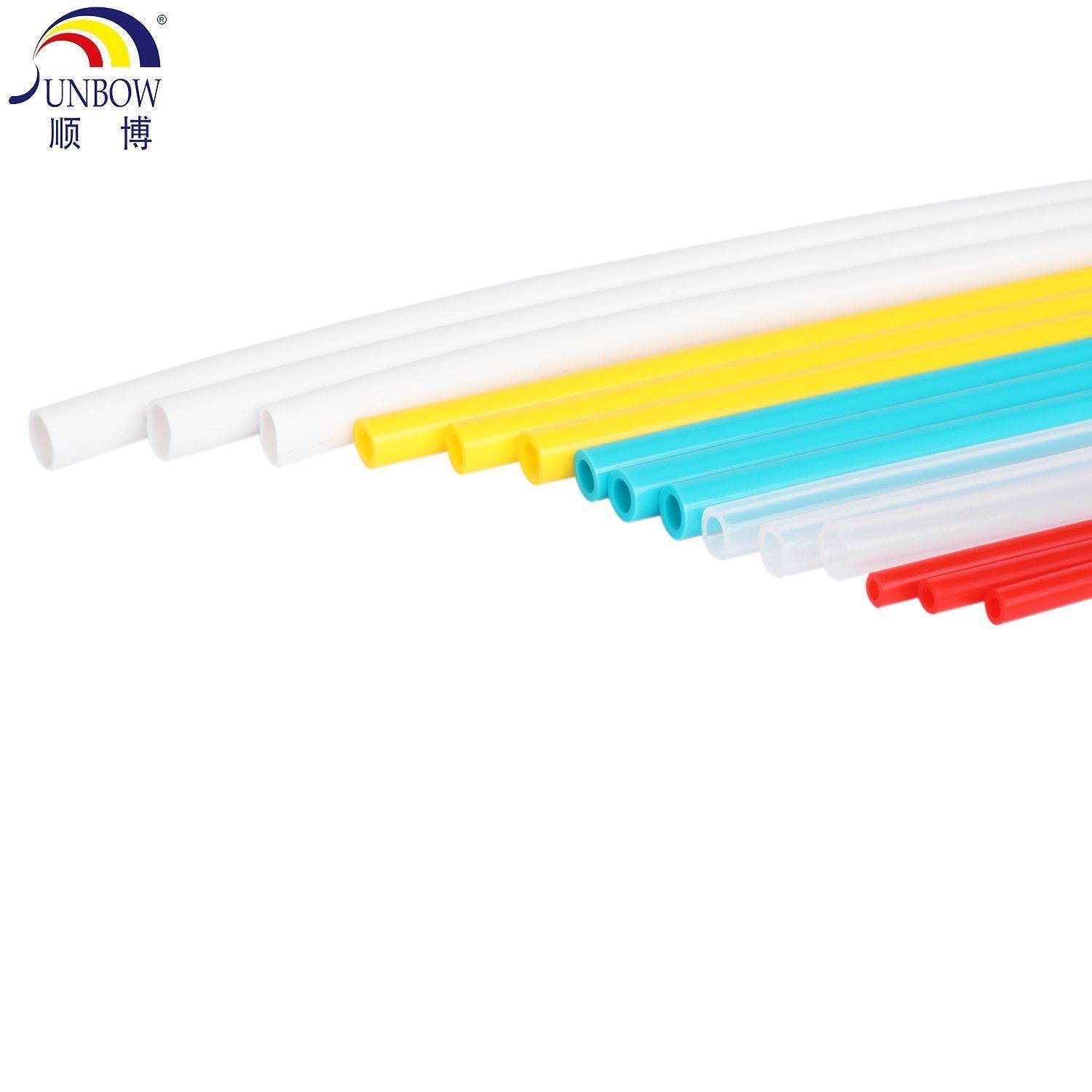

It is extruded by food grade level silicone rubber.
Usage
Food Grade Silicone Rubber Tubing are commonly used in contact with foods in accordance with provisions of FDA 21 CFR 177.2600. It can be installed in Coffee maker, Drinking fountains, Hookah and Home appliances waterproof line protection.
Specification
Performance | Test method | Performance index |
Tearing strength（MPa） | ASTM D 2671 | ≥25 MPa |
Elongation（%） | ASTM D 2671 | ≥300% |
Flame retardant | UL224 | VW-1 |
Breakdown strength (kv/mm) | IEC 60243 | ≥26 |
Volume resistivity（Ω/cm） | IEC 60093 | ≥1014 |
Copper corrosion | UL 224 | Passed |
Water absorption | ASTM D 570 | < 0.1% |
Dimension
Performance | Test method | Performance index |
Tearing strength（MPa） | ASTM D 2671 | ≥25 MPa |
Elongation（%） | ASTM D 2671 | ≥300% |
Flame retardant | UL224 | VW-1 |
Breakdown strength (kv/mm) | IEC 60243 | ≥26 |
Volume resistivity（Ω/cm） | IEC 60093 | ≥1014 |
Copper corrosion | UL 224 | Passed |
Water absorption | ASTM D 570 | < 0.1% |
Dimension
Inner Diameter(mm) | Tolerance（mm） | Thickness and tolerance (mm) |
Φ2.0 | ±0.10 | 1.00 ±0.10 |
Φ3.0 | ±0.10 | 1.50 ±0.10 |
Φ4.0 | ±0.10 | 2.00±0.10 |
Φ5.0 | ±0.10 | 2.00±0.10 |
Φ6.0 | ±0.10 | 2.00±0.10 |
Φ8.0 | ±0.10 | 2.00±0.10 |
Φ8.0 | ±0.10 | 2.70±0.10 |
Φ9.0 | ±0.10 | 2.50±0.10 |
Remark： Other sizes can be made upon customer requirements.
.
