Model number：SBS-SRRT

Working temperature: -60ºC - 200ºC

Structure

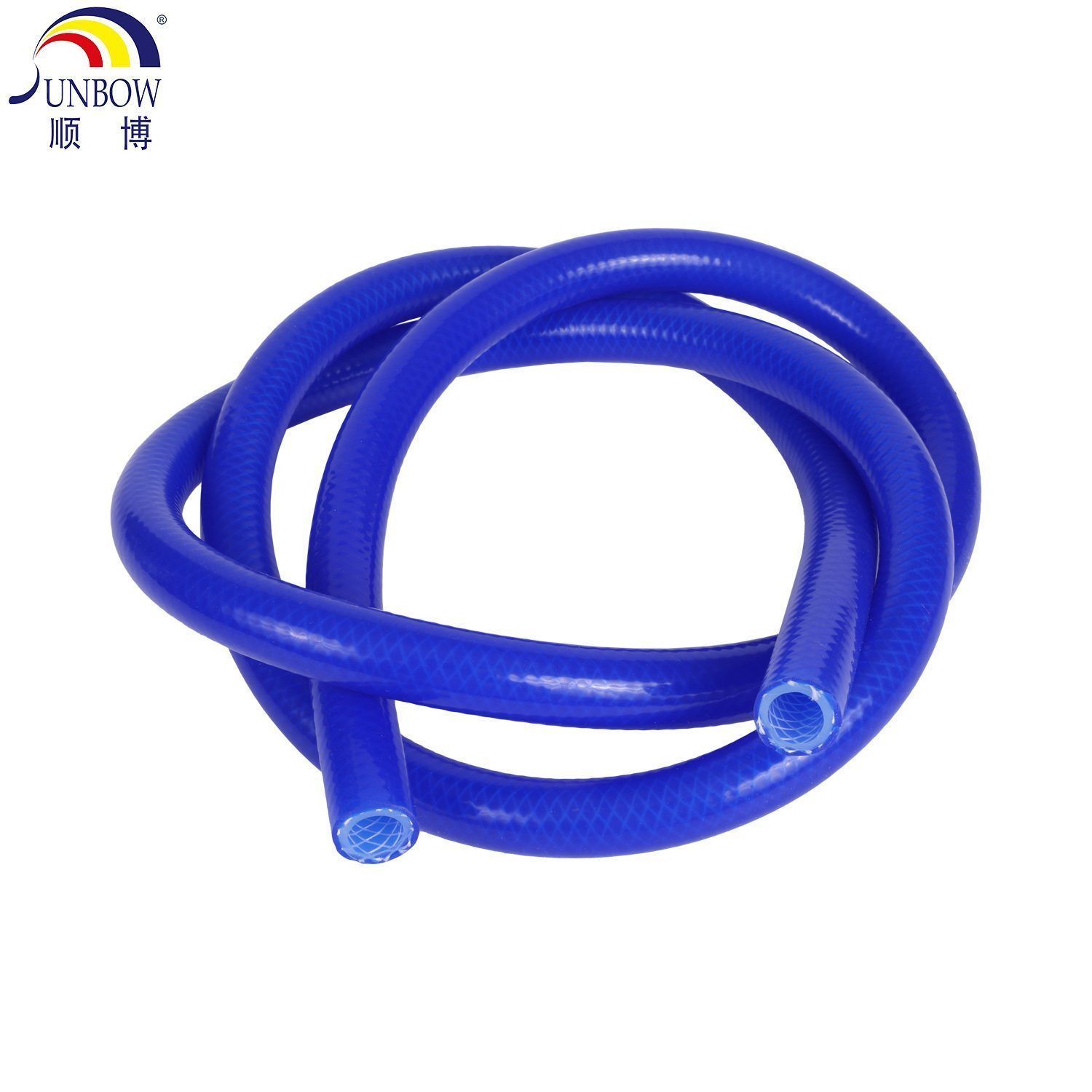

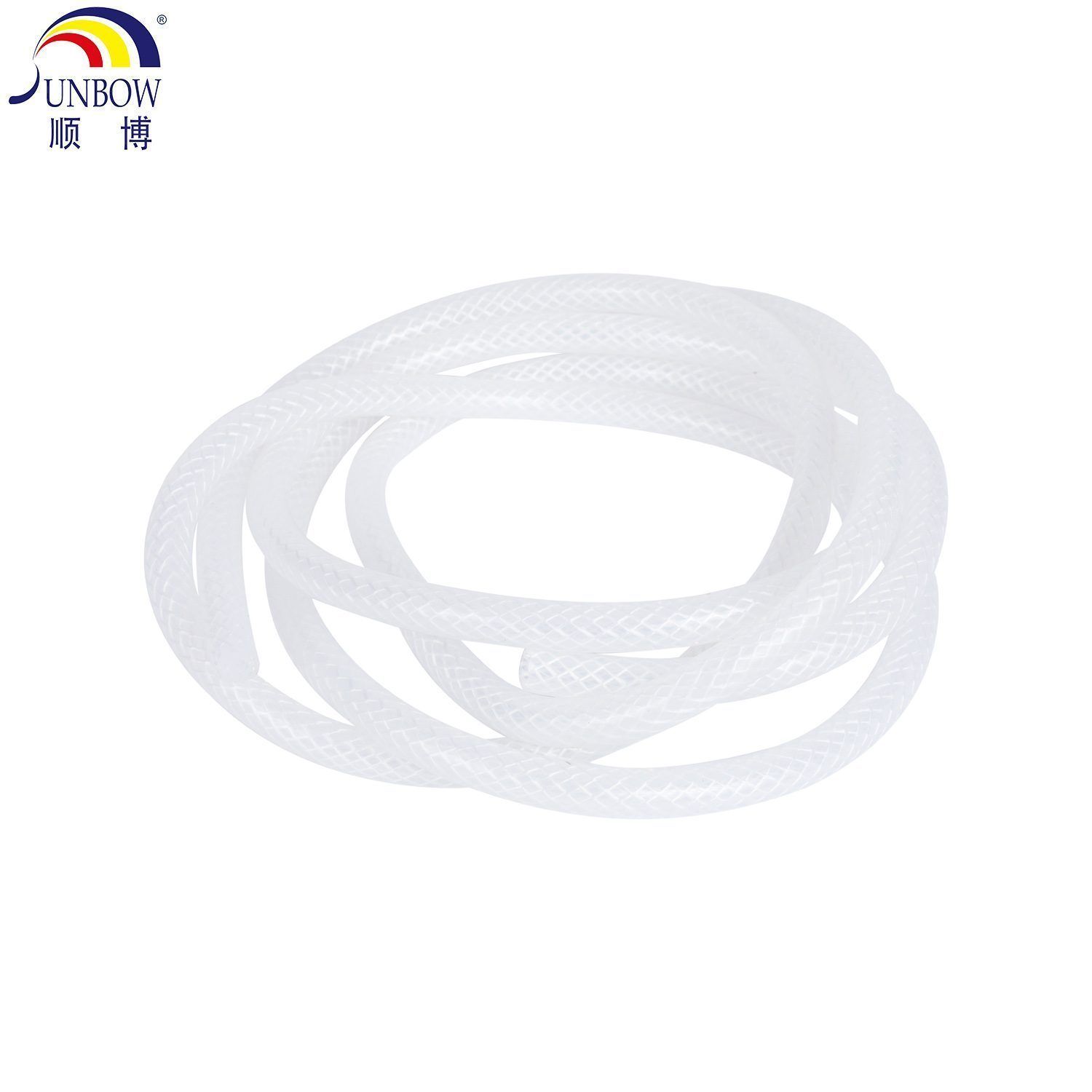

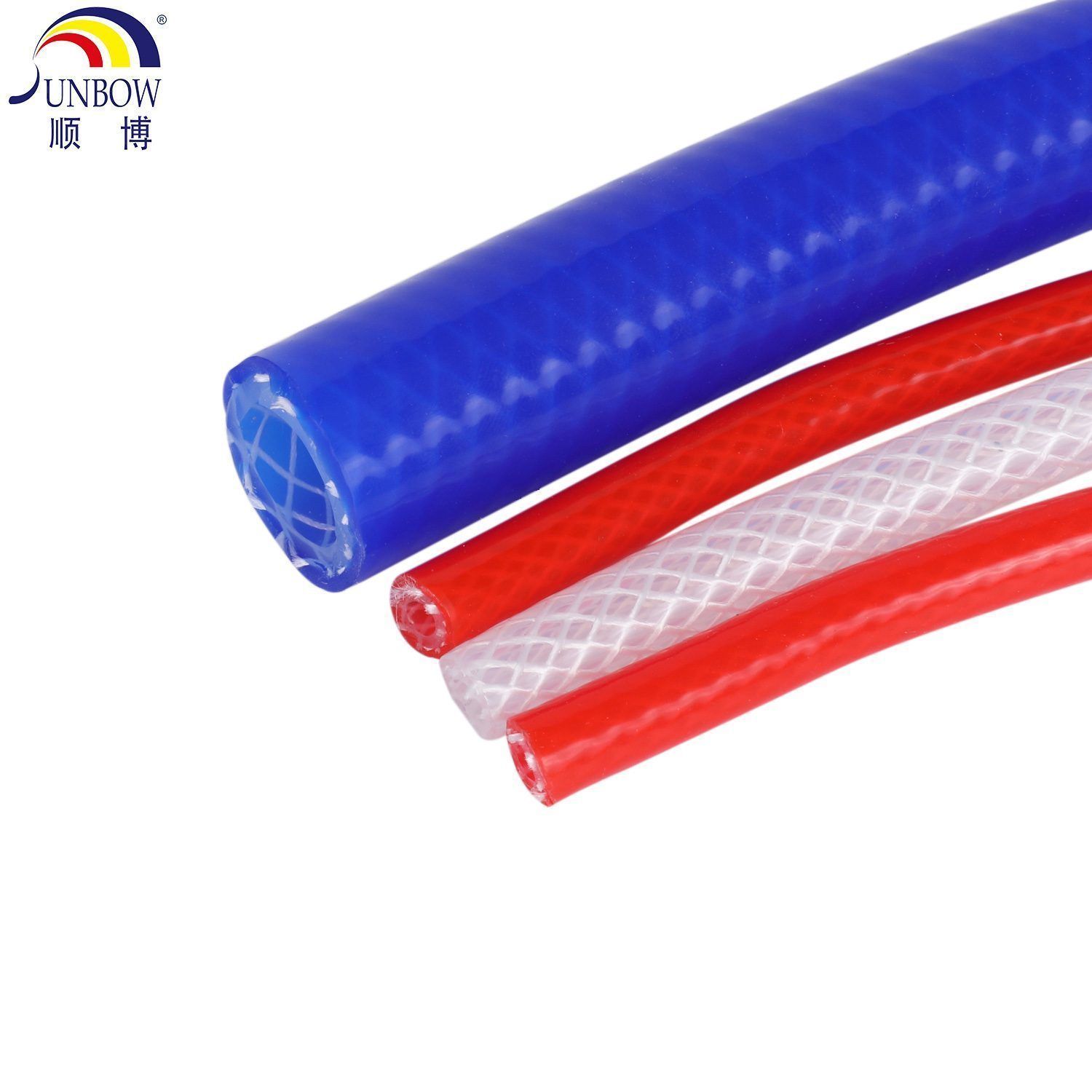

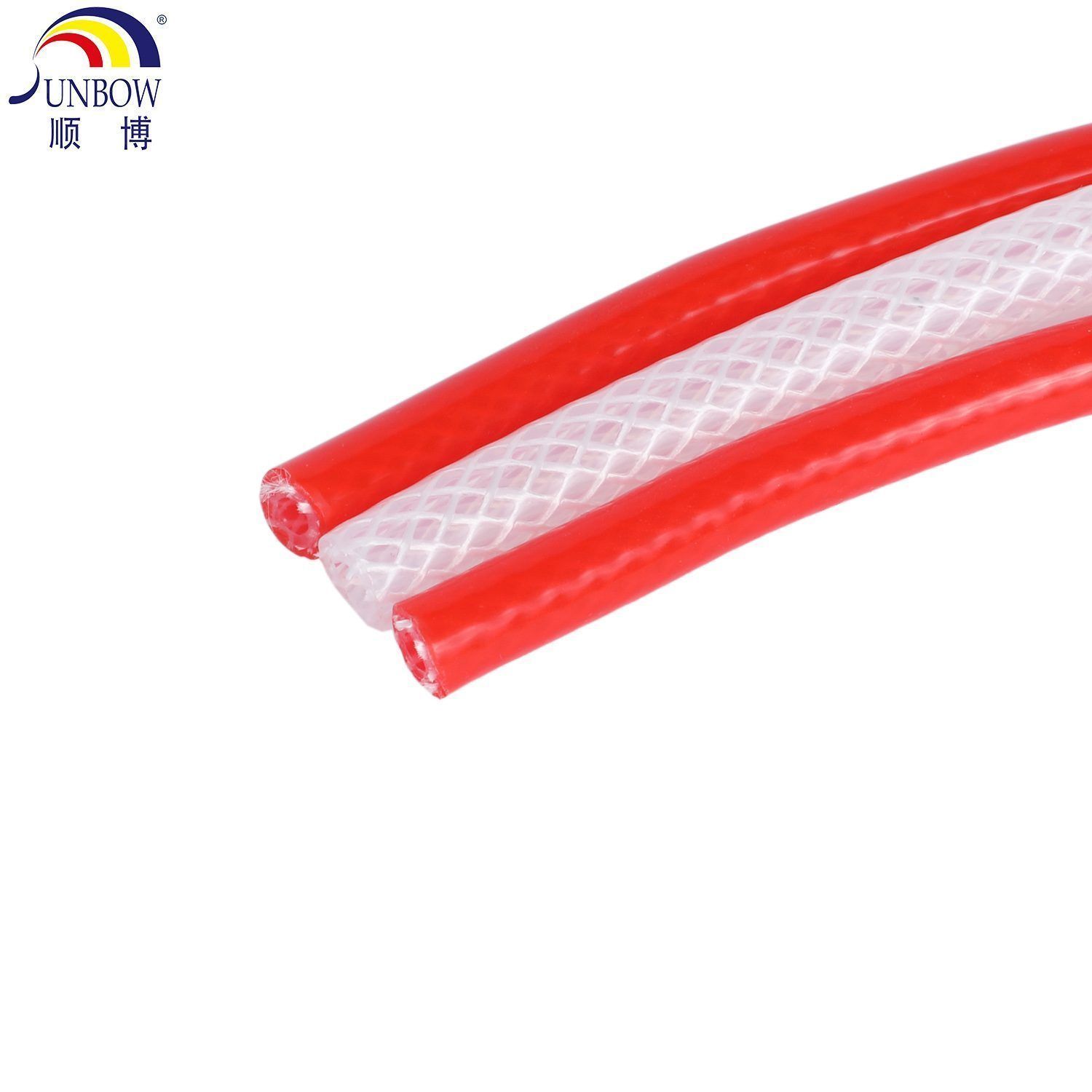

Extruded silicone rubber tube reinforced with performance fiber braided, then extruded with silicone rubber and treated.

Usage

The tube is flexible and yet able to stand high working pressure at high Temperature. It offers excellent heat and cold resistance; therefore, make it very suitable for a wide range of application. In electrical appliances industry, water pipe, gas pipe, and it can be installed in coffee maker etc.

Specification

Item

Performance

Note

Thermal endurance

No indication of crack

200ºC × 1 hours

Water resistant pressure

2.5Mpa

No breaking

Break pressure

≥4.0Mpa

Break

Dimension

Inner Diameter

Tolerance

Wall Thickness

Tolerance

mm

mm

mm

mm

3.00

+0.4,-0.2

1.5

+/-0.2

3.00

+0.4,-0.2

2.0

+/-0.2

4.00

+0.4,-0.2

2.0

+/-0.2

5.00

+0.4,-0.2

2.0

+/-0.2

6.00

+0.4,-0.2

2.0

+/-0.2

7.00

+0.4,-0.2

2.0

+/-0.2

8.00

+0.4,-0.2

3.0

+/-0.2

9.00

+0.4,-0.2

3.0

+/-0.2

10.00

+0.4,-0.2

3.5

+/-0.2

12.70

+0.4,-0.2

3.8

+/-0.2

15.87

+0.4,-0.2

4.3

+/-0.2

19.05

+0.4,-0.2

4.4

+/-0.2

22.22

+0.4,-0.2

4.5

+/-0.2

25.40

+0.4,-0.2

4.5

+/-0.2

31.75

+0.4,-0.2

4.5

+/-0.2



 Remark: Other sizes can make to customer’s requirements.
